Bosch DC motors

Bosch's compact geared motors are characterized by their robustness, reliability, and high-power density. The 12V and 24V DC motors are available in a variety of torque/speed variants and are suitable for various applications: Compact valve actuators VMC for precise adjustment tasks, flat drives FPG and AHC for tight spaces, powerful motors CHP, CDP, EFP and EDP for torque-intensive applications in continuous operation, wiper direct drives WDD2 for complex controls and processes, and brushless EC drives ECA and PSM for high-performance actuation.

To the table overview

Voltage

Nominal speed

Nominal torque

Product family Part number

AHC1 Single-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 820 rpm
Nominal torque: 0.1 Nm

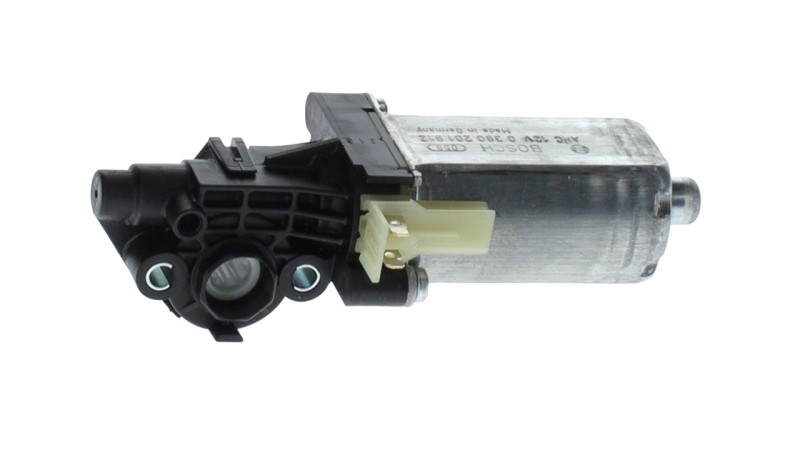

AHC1 geared DC MOTOR 0390201912

AHC1 Single-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 845 rpm
Nominal torque: 0.1 Nm

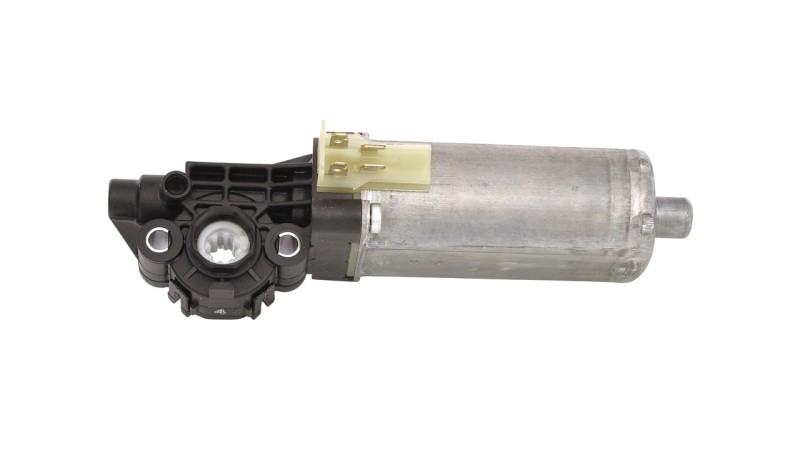

AHC1 geared DC MOTOR 0390201914

AHC1 Single-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 845 rpm
Nominal torque: 0.1 Nm

AHC1 geared DC MOTOR 0390201915

AHC1 Single-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 820 rpm
Nominal torque: 0.1 Nm

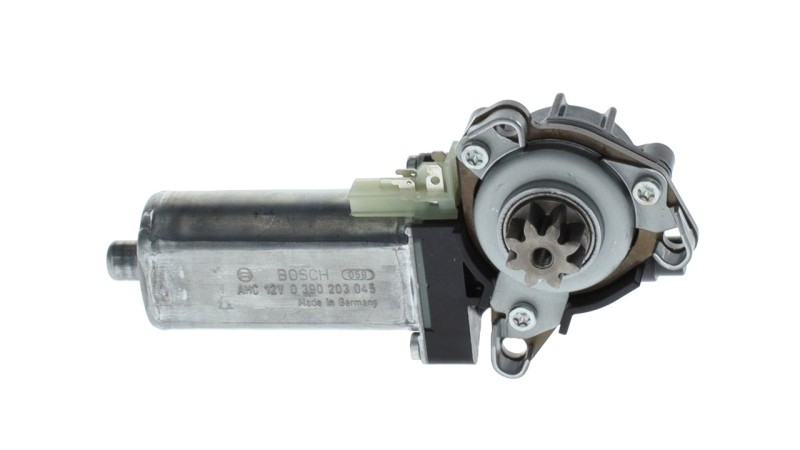

AHC1 geared dc motor 0390203045

AHC1 Single-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 6.4 rpm
Nominal torque: 2 Nm

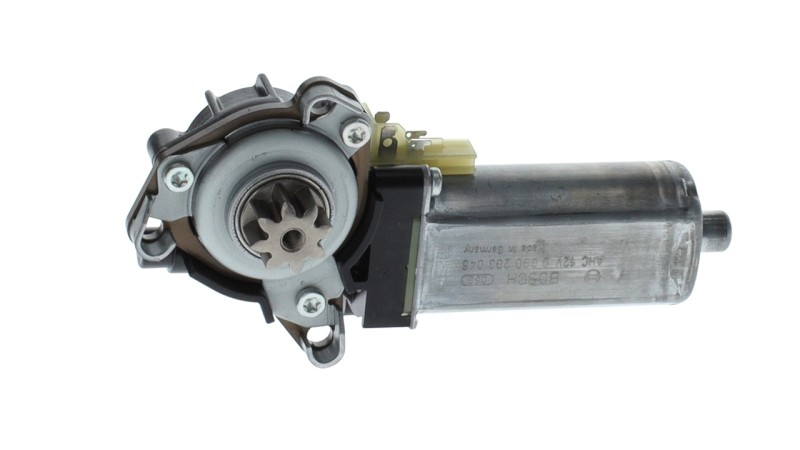

AHC1 geared dc motor 0390203046

AHC1 Single-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 6.4 rpm
Nominal torque: 2 Nm

AHC1 geared DC MOTOR 0390203316

AHC1 Single-stage motor with Transmission

Nominal voltage: 24 V
Nominal speed: 841 rpm
Nominal torque: 0.1 Nm

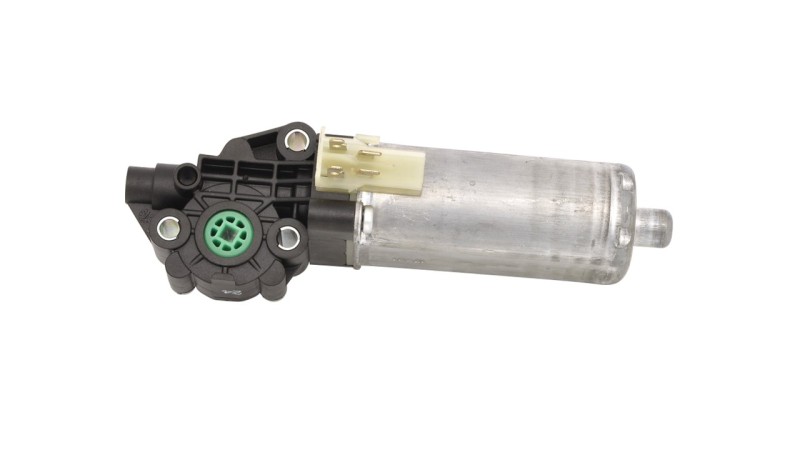

AHC1 geared dc motor 0390203317

AHC1 Single-stage motor with Transmission

Nominal voltage: 24 V
Nominal speed: 841 rpm
Nominal torque: 0.1 Nm

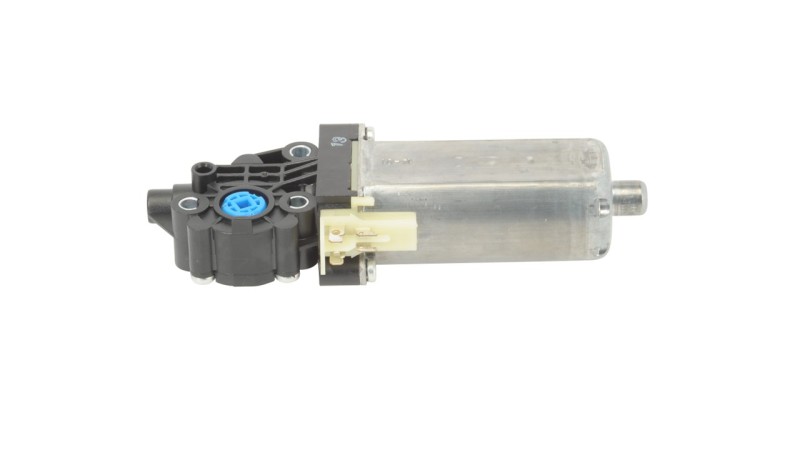

AHC1 geared dc motor 0390203370

AHC1 Single-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 210 rpm
Nominal torque: 0.3 Nm

AHC1 geared dc motor 0390203371

AHC1 Single-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 411 rpm
Nominal torque: 0.3 Nm

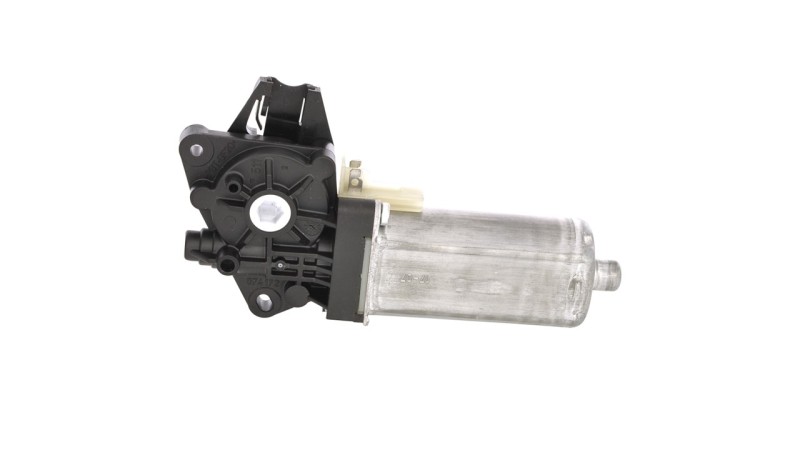

AHC1 geared dc motor 0390203386

AHC1 Single-stage motor with Transmission

Nominal voltage: 24 V
Nominal speed: 99.5 rpm
Nominal torque: 1.5 Nm

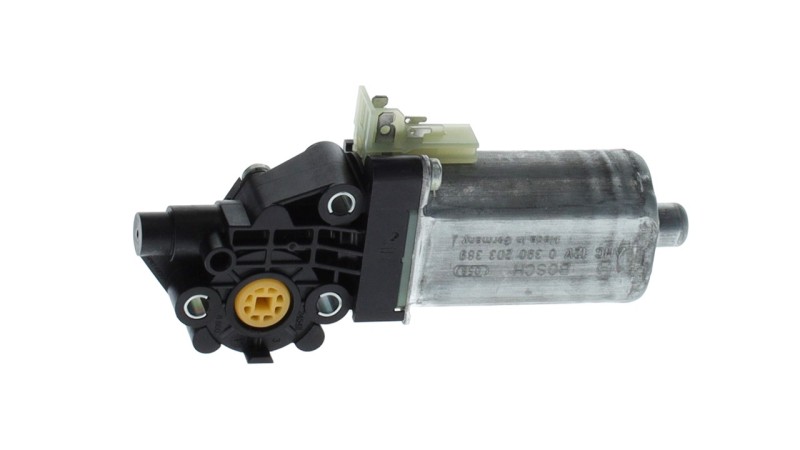

AHC1 geared dc motor 0390203389

AHC1 Single-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 75 rpm
Nominal torque: 0.3 Nm

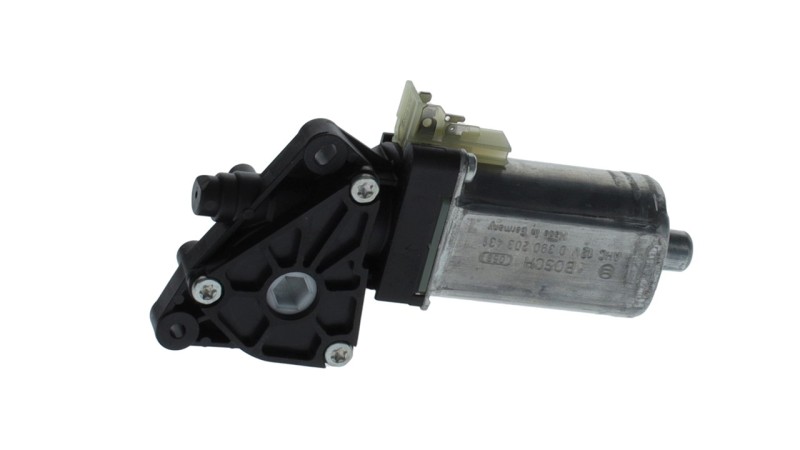

AHC1 geared dc motor 0390203431

AHC1 Single-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 63 rpm
Nominal torque: 2 Nm

Product family Part number

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 29 rpm
Nominal torque: 2 Nm

AHC2 DC Motor with transmission

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 28.5 rpm
Nominal torque: 2 Nm

AHC2_DC_Motor_0390201949

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 23.6 rpm
Nominal torque: 1 Nm

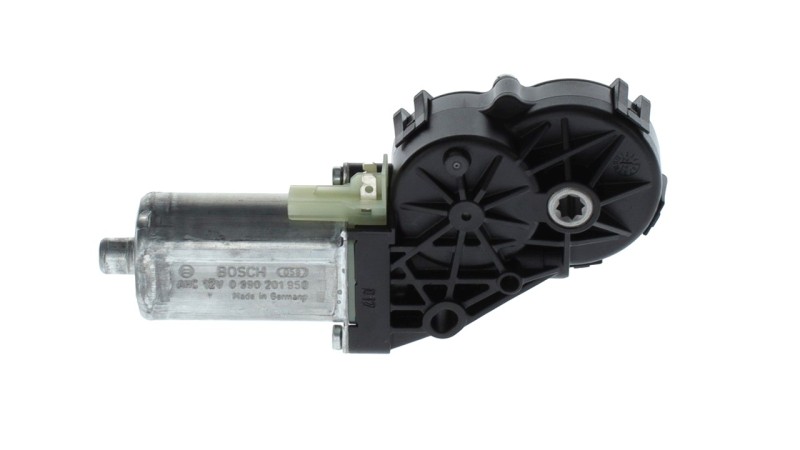

AHC2 Electric Two Stage Geared Motor 0390201950

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 29 rpm
Nominal torque: 2 Nm

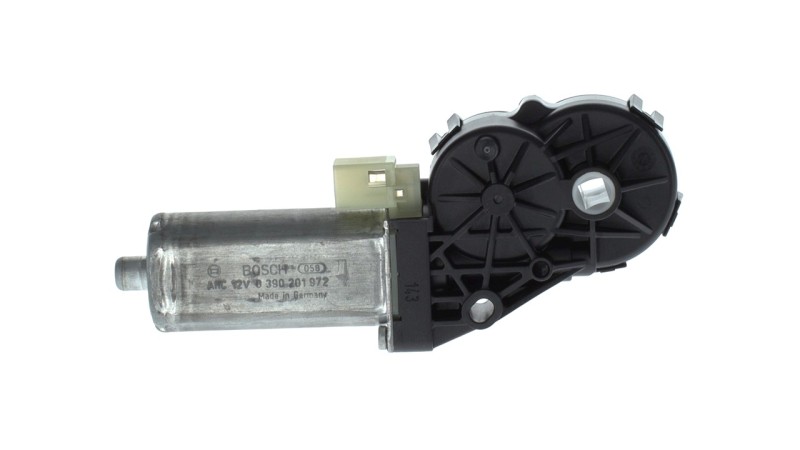

AHC2 Electric Two Stage Geared Motor 0390201972

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 22.5 rpm
Nominal torque: 2 Nm

AHC2 Electric Motor 0390201973

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 22.5 rpm
Nominal torque: 2 Nm

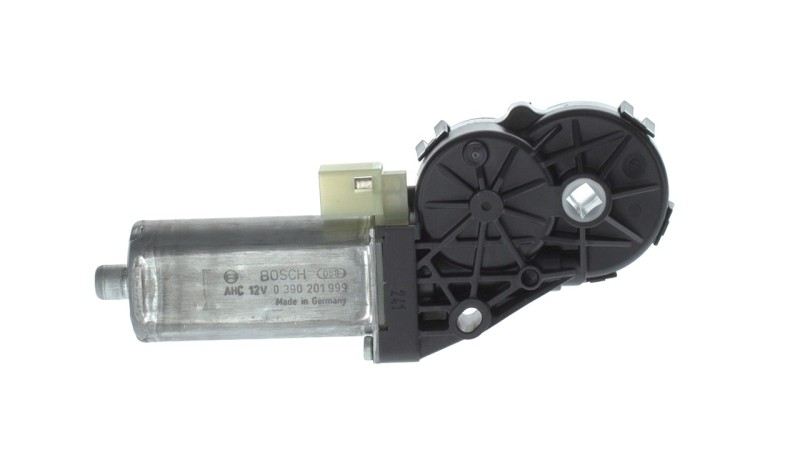

AHC2 geared dc motor 0390201999

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 22.5 rpm
Nominal torque: 2 Nm

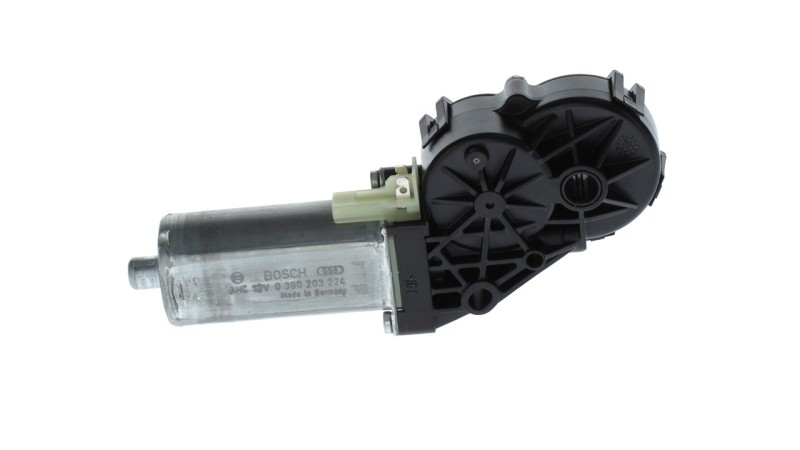

AHC2 DC Motor with transmission 0390203224

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 18.65 rpm
Nominal torque: 2 Nm

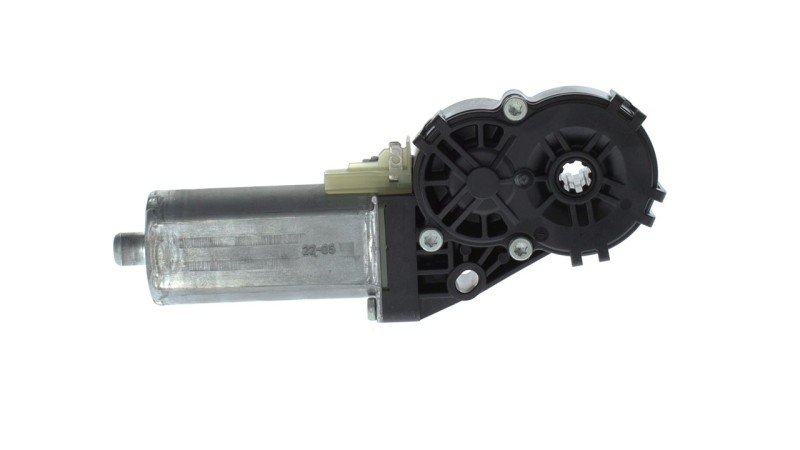

AHC2 Two stage Motor 0390203225

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 18.65 rpm
Nominal torque: 2 Nm

AHC2 DC Motor 0390203226

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 18.65 rpm
Nominal torque: 2 Nm

Product family Part number

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 18.65 rpm
Nominal torque: 2 Nm

AHC2 DC Motor with transmission

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 37.3 rpm
Nominal torque: 1 Nm

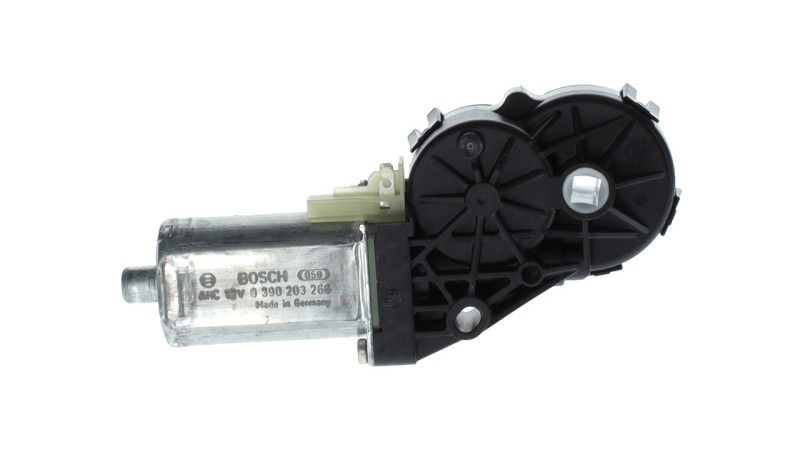

AHC2 Geared DC Motor 0390203266

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 22.25 rpm
Nominal torque: 1.5 Nm

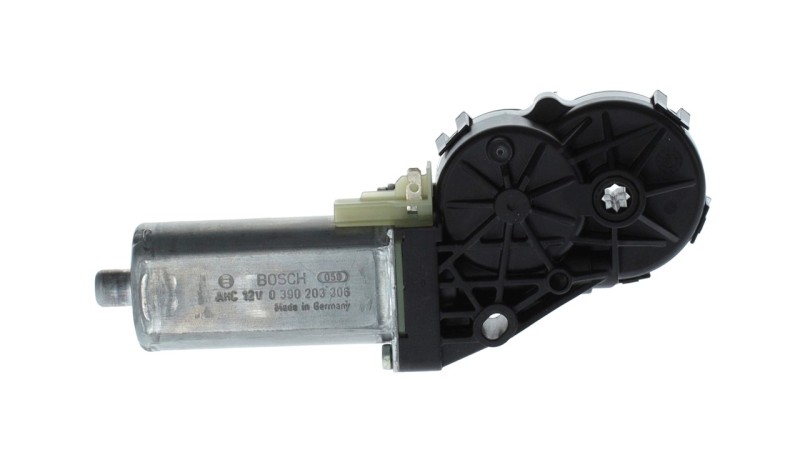

AHC2 geared dc motor 0390203306

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 18.65 rpm
Nominal torque: 2 Nm

AHC2 geared dc motor 0390203307

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 18.65 rpm
Nominal torque: 2 Nm

AHC2 geared dc motor 0390203308

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 18.65 rpm
Nominal torque: 2 Nm

AHC2 geared dc motor 0390203309

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 18.65 rpm
Nominal torque: 2 Nm

AHC2 geared dc motor 0390203310

AHC2 Two-stage motor with Transmission

Nominal voltage: 24 V
Nominal speed: 16.9 rpm
Nominal torque: 2 Nm

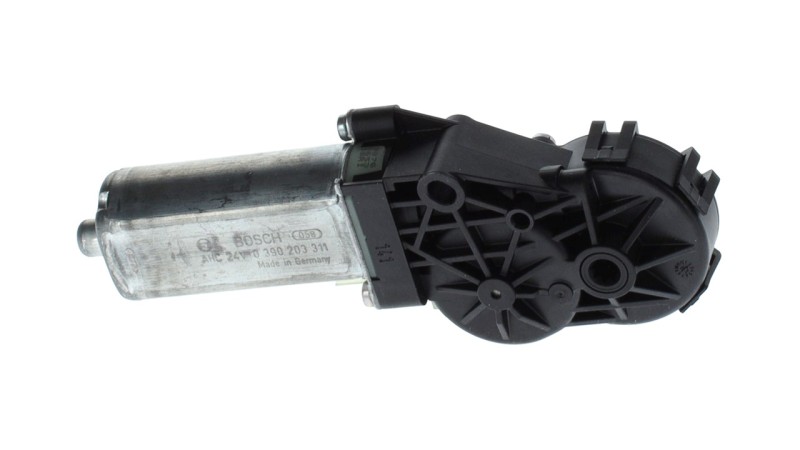

AHC2 geared dc motor 0390203311

AHC2 Two-stage motor with Transmission

Nominal voltage: 24 V
Nominal speed: 16.9 rpm
Nominal torque: 2 Nm

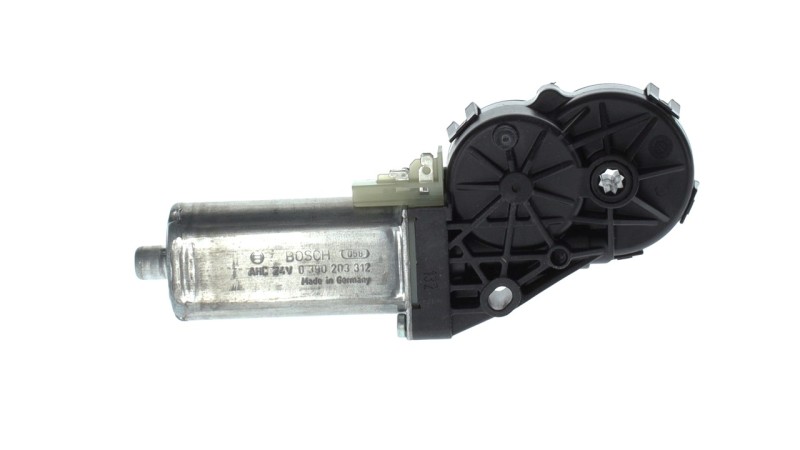

AHC2 geared dc motor 0390203312

AHC2 Two-stage motor with Transmission

Nominal voltage: 24 V
Nominal speed: 16.9 rpm
Nominal torque: 2 Nm

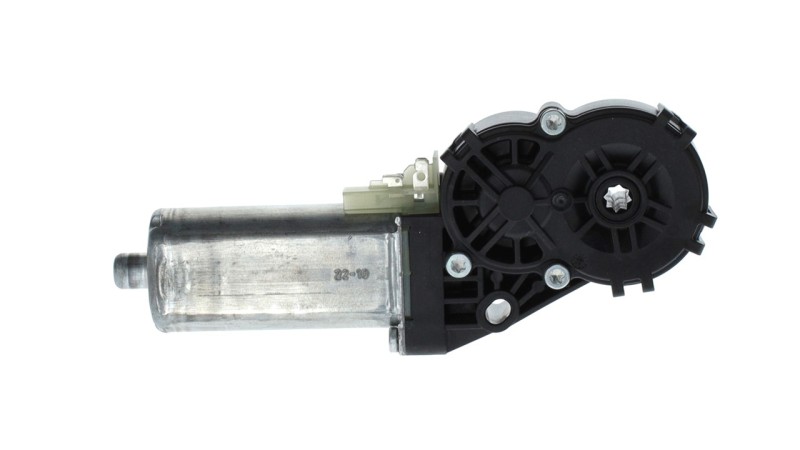

AHC2 geared dc motor 0390203313

AHC2 Two-stage motor with Transmission

Nominal voltage: 24 V
Nominal speed: 16.9 rpm
Nominal torque: 2 Nm

AHC2 geared dc motor 0390203372

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 14.1 rpm
Nominal torque: 1 Nm

AHC2 geared dc motor 0390203407

AHC2 Two-stage motor with Transmission

Nominal voltage: 12 V
Nominal speed: 43.8 rpm
Nominal torque: 2 Nm

Product family Part number

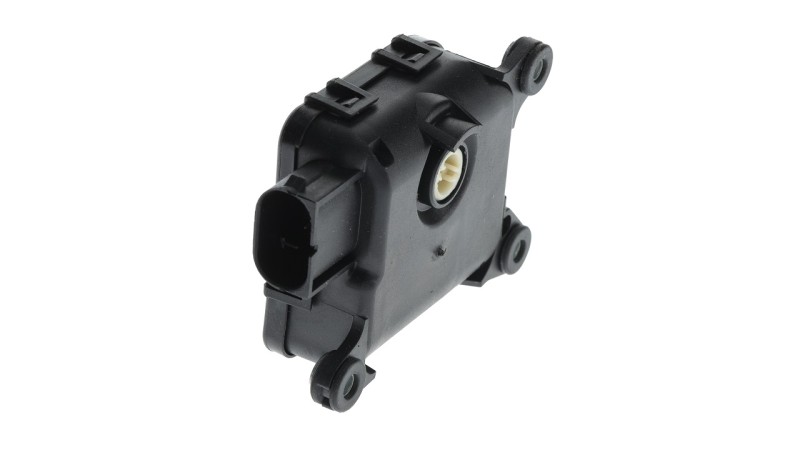

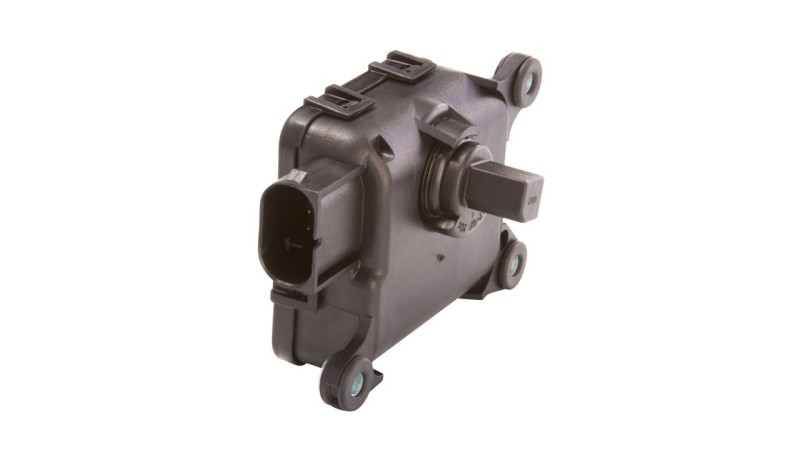

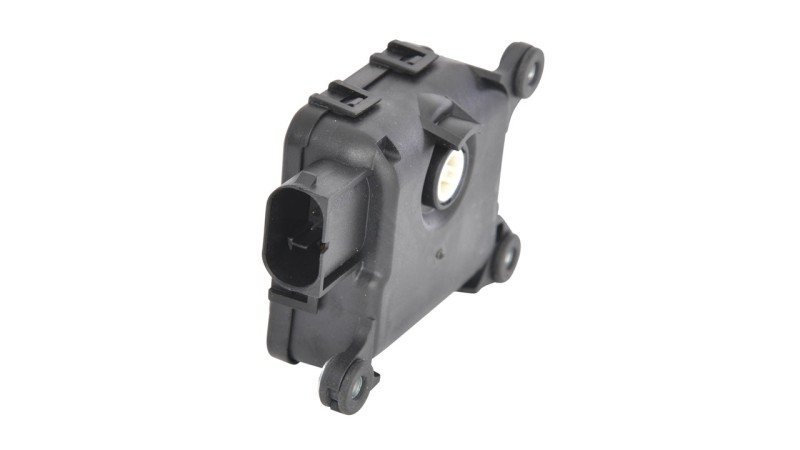

VMC Electric Actuator

Nominal voltage: 24 V
Nominal speed: 6 rpm
Nominal torque: 0.4 Nm

Product family Part number

VMC Electric Actuator

Nominal voltage: 12 V
Nominal speed: 7 rpm
Nominal torque: 0.4 Nm

Product family Part number

VMC Electric Actuator

Nominal voltage: 24 V
Nominal speed: 6 rpm
Nominal torque: 0.4 Nm

Product family Part number

VMC Electric Actuator

Nominal voltage: 12 V
Nominal speed: 6.5 rpm
Nominal torque: 0.3 Nm

Product family Part number

VMC Electric Actuator

Nominal voltage: 12 V
Nominal speed: 4.5 rpm
Nominal torque: 0.4 Nm

FPG2 geared dc motor 01308224488

FPG2 Single-stage flat motor with Transmission

Nominal voltage: 12 V
Nominal speed: 74.5 rpm
Nominal torque: 1 Nm

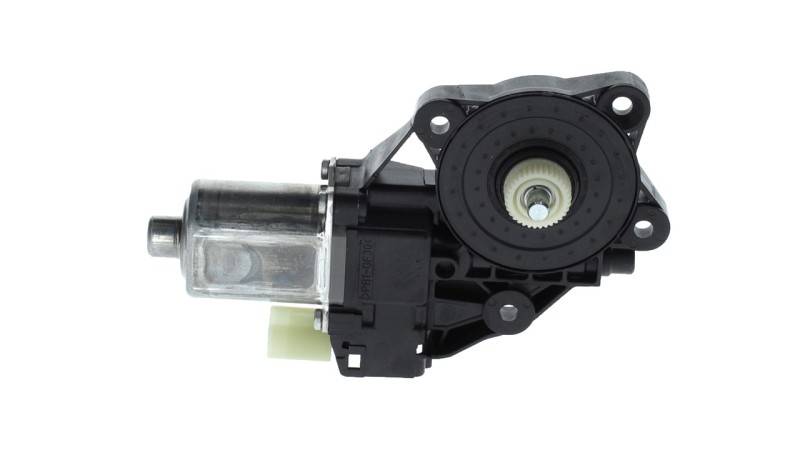

FPG2 geared dc motor 01308224489

FPG2 Single-stage flat motor with Transmission

Nominal voltage: 12 V
Nominal speed: 74.5 rpm
Nominal torque: 1 Nm

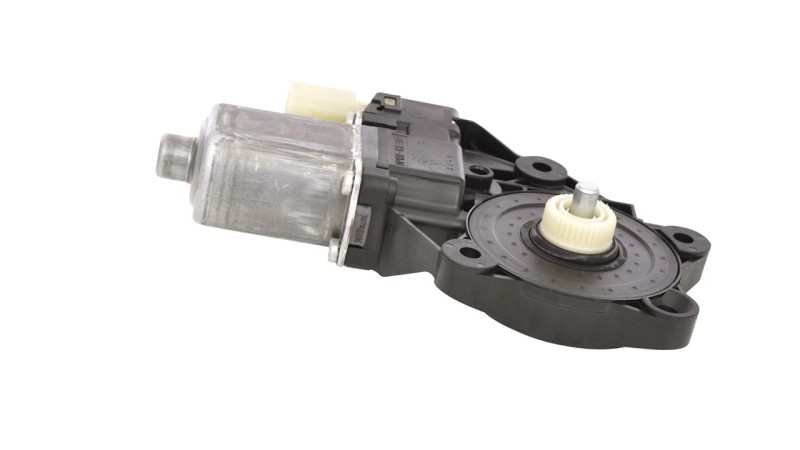

FPG2 geared dc motor 01308224492

FPG2 Single-stage flat motor with Transmission

Nominal voltage: 12 V
Nominal speed: 74.5 rpm
Nominal torque: 1 Nm

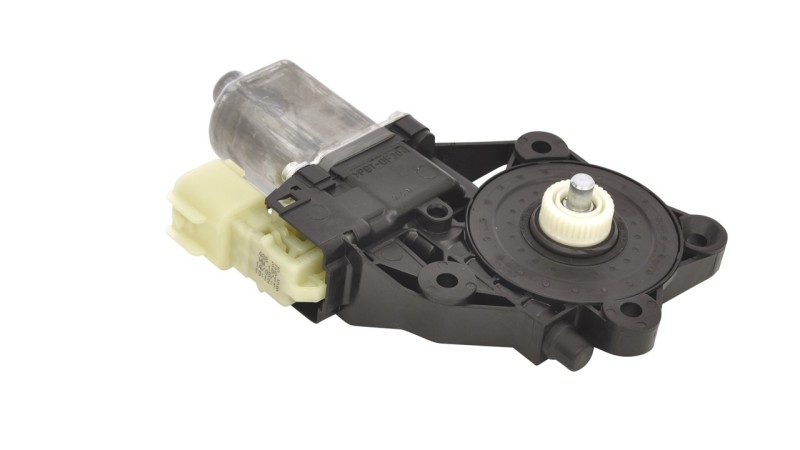

FPG2 geared dc motor 01308224493

FPG2 Single-stage flat motor with Transmission

Nominal voltage: 12 V
Nominal speed: 74.5 rpm
Nominal torque: 1 Nm

FPG2 geared dc motor 01308224494

FPG2 Single-stage flat motor with Transmission

Nominal voltage: 24 V
Nominal speed: 78.5 rpm
Nominal torque: 1 Nm

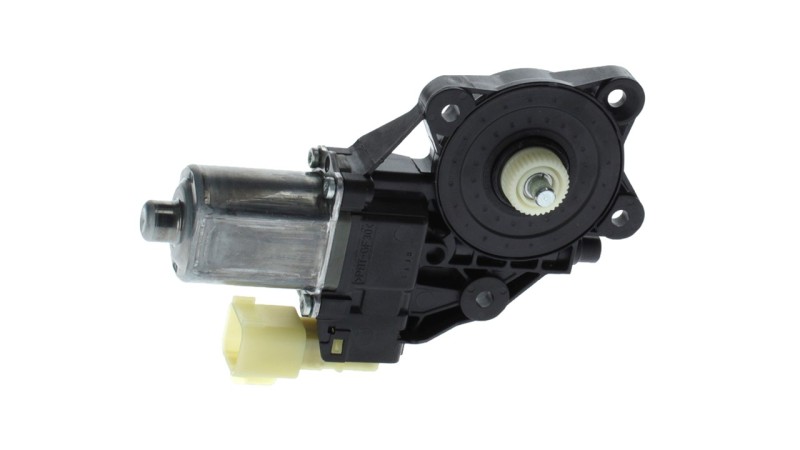

FPG2 geared dc motor 01308224495

FPG2 Single-stage flat motor with Transmission

Nominal voltage: 24 V
Nominal speed: 78.5 rpm
Nominal torque: 1 Nm

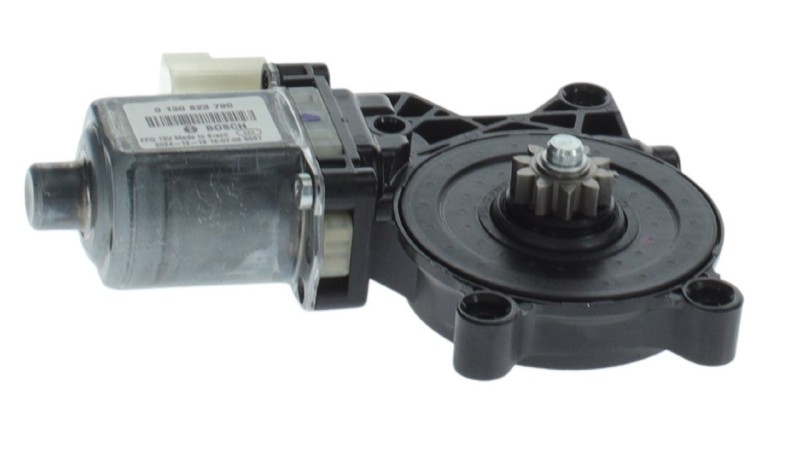

FPG EVO geared dc motor 0130823790

FPG-EVO Single-stage flat motor with Transmission

Nominal voltage: 12 V
Nominal speed: 82 rpm
Nominal torque: 1 Nm

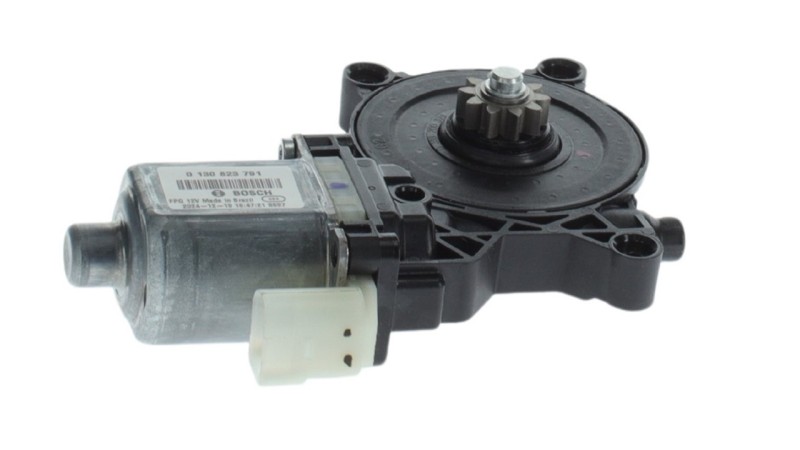

FPG EVO geared dc motor 0130823791

FPG-EVO Single-stage flat motor with Transmission

Nominal voltage: 12 V
Nominal speed: 82 rpm
Nominal torque: 1 Nm

Product family Part number

CHP3 Large Electric Motor with Transmission

Nominal voltage: 12 V
Nominal speed: 61 / 41 rpm
Nominal torque: 2 Nm

CHP3 geared dc motor 0390243686

CHP3 Large Electric Motor with Transmission

Nominal voltage: 12 V
Nominal speed: 61 / 41 rpm
Nominal torque: 2 Nm

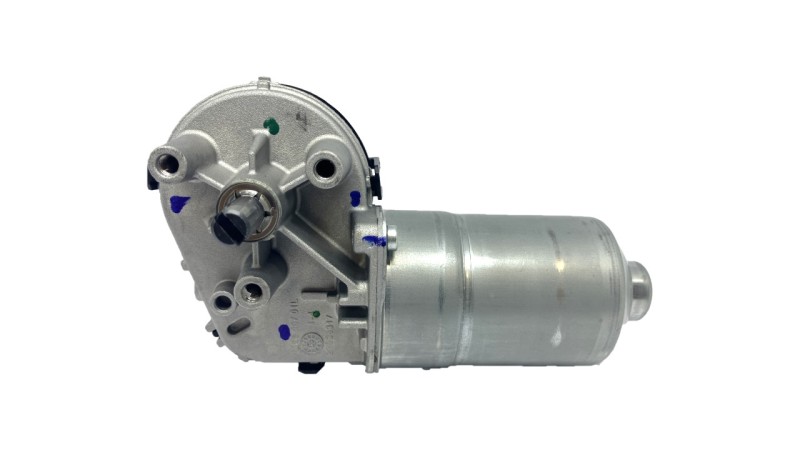

CHP3 0390243803

CHP3 Large Electric Motor with Transmission

Nominal voltage: 24 V
Nominal speed: 52 rpm
Nominal torque: 9,5 Nm

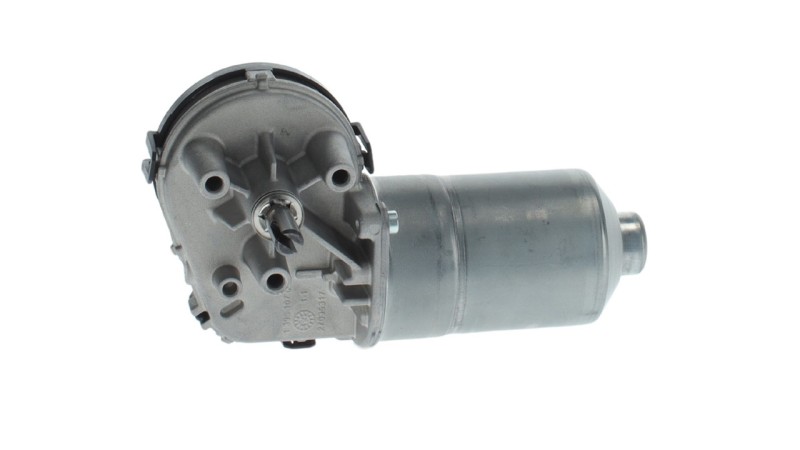

CHP3 0390243804

CHP3 Large Electric Motor with Transmission

Nominal voltage: 24 V
Nominal speed: 52 rpm
Nominal torque: 9,5 Nm

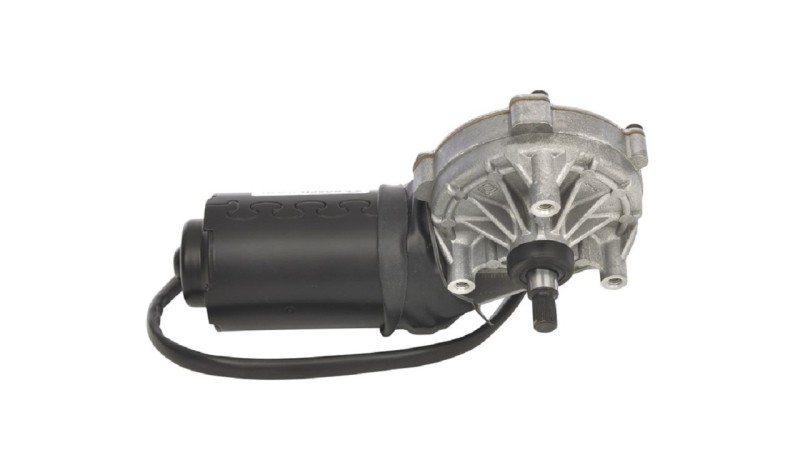

CDP geared dc motor 0986337200

CDP Large Electric Motor with Transmission

Nominal voltage: 24 V
Nominal speed: 27 / 44 rpm
Nominal torque: 3 Nm

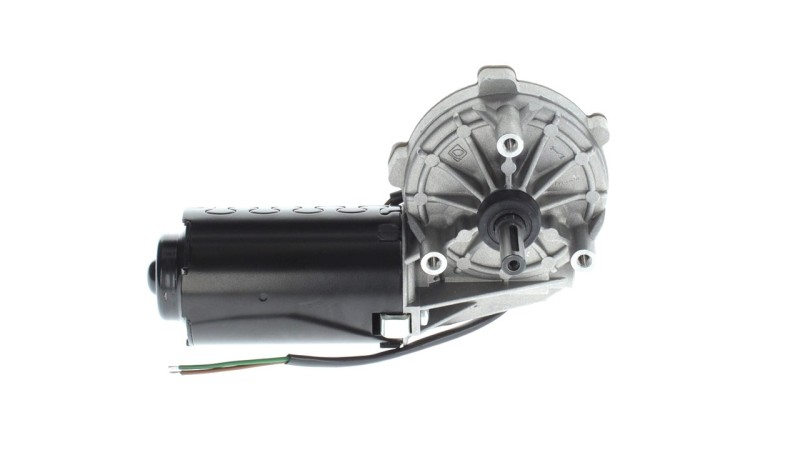

CDP geared DC MOTOR 0986337201

CDP Large Electric Motor with Transmission

Nominal voltage: 24 V
Nominal speed: 40 rpm
Nominal torque: 5 Nm

CDP geared dc motor 0986337209

CDP Large Electric Motor with Transmission

Nominal voltage: 24 V
Nominal speed: 28 / 46 rpm
Nominal torque: 3 Nm

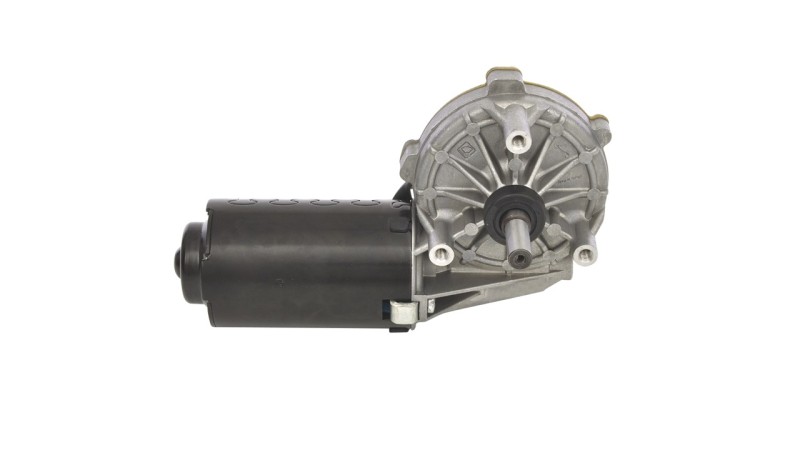

CDP geared dc motor 0986337250

CDP Large Electric Motor with Transmission

Nominal voltage: 24 V
Nominal speed: 80 rpm
Nominal torque: 6 Nm

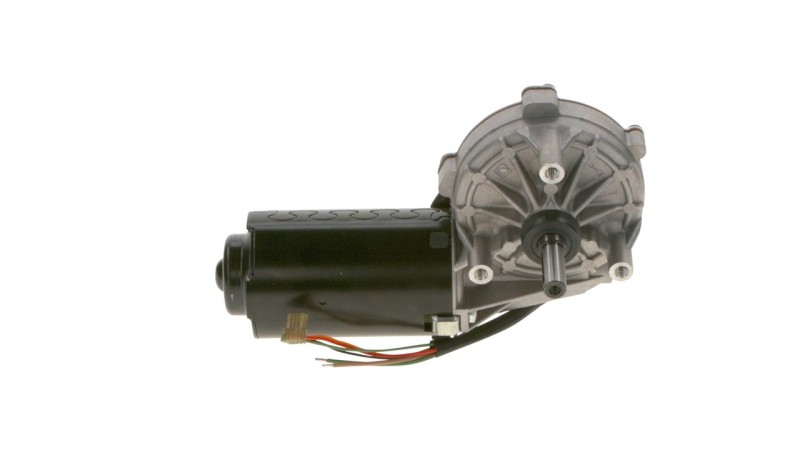

CDP geared DC MOTOR 0986337270

CDP Large Electric Motor with Transmission

Nominal voltage: 12 V
Nominal speed: 42 rpm
Nominal torque: 10 Nm

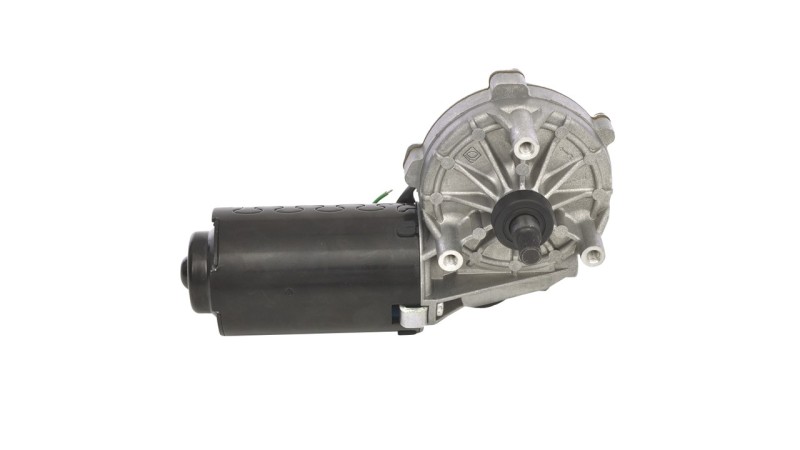

CDP geared DC MOTOR 0986337280

CDP Large Electric Motor with Transmission

Nominal voltage: 12 V
Nominal speed: 37 rpm
Nominal torque: 10 Nm

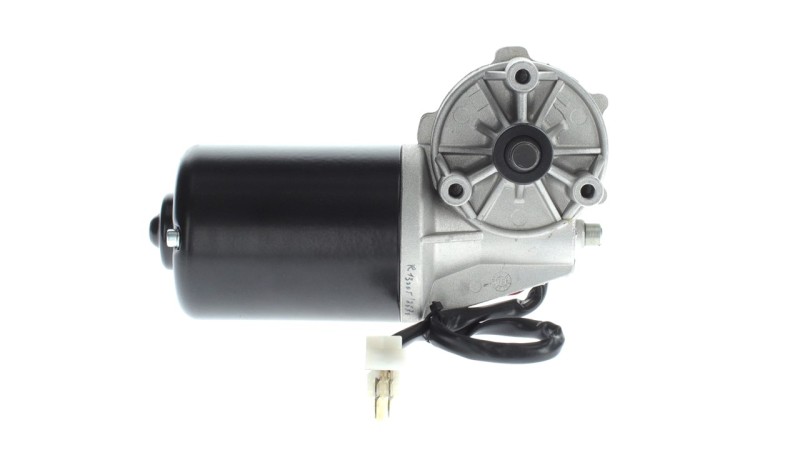

EFP geared dc Motor 0986337400

EFP Large Electric Motor with Transmission

Nominal voltage: 12 V
Nominal speed: 32 / 48 rpm
Nominal torque: 2.5 Nm

EFP geared dc Motor 0986337401

EFP Large Electric Motor with Transmission

Nominal voltage: 24 V
Nominal speed: 31 / 52 rpm
Nominal torque: 3 Nm

EFP geared dc motor 0986337402

EFP Large Electric Motor with Transmission

Nominal voltage: 24 V
Nominal speed: 27 / 44 rpm
Nominal torque: 4 Nm

EFP geared dc motor 0986337409

EFP Large Electric Motor with Transmission

Nominal voltage: 24 V
Nominal speed: 63 rpm
Nominal torque: 10 Nm

EFP geared dc motor 0986337410

EFP Large Electric Motor with Transmission

Nominal voltage: 24 V
Nominal speed: 70 rpm
Nominal torque: 10 Nm

EFP geared dc motor 0986337411

EFP Large Electric Motor with Transmission

Nominal voltage: 12 V
Nominal speed: 39 rpm
Nominal torque: 5 Nm

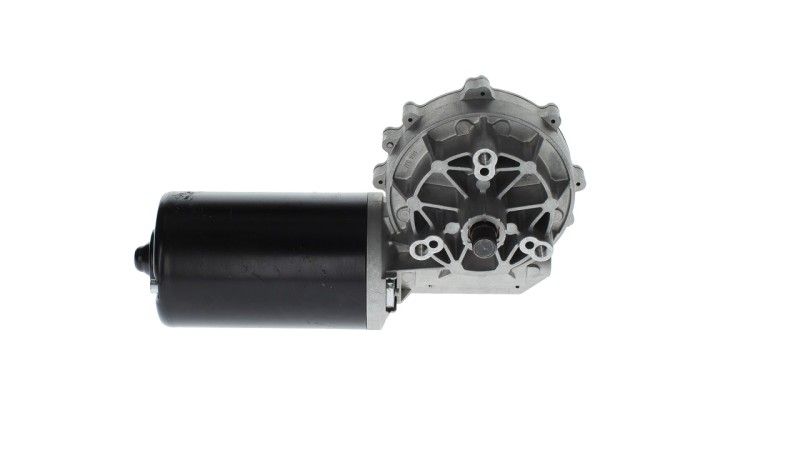

EDP geared dc Motor 0986337451

EDP Large Electric Motor with Transmission

Nominal voltage: 24 V
Nominal speed: 23 / 40 rpm
Nominal torque: 8 Nm

WDD2 geared dc Motor 0390249101

WDD2 Direct wiper drive

Nominal voltage: 12 V
Nominal speed: 60 / 40 rpm
Nominal torque: 8 / 12 Nm

WDD2 geared dc Motor 0390249102

WDD2 Direct wiper drive

Nominal voltage: 12 / 24 V
Nominal speed: 60 / 40 rpm
Nominal torque: 8 / 12 Nm

WDD2 geared dc Motor 039024910a

WDD2 Direct wiper drive

Nominal voltage: 12 / 24 V
Nominal speed: 60 / 40 rpm
Nominal torque: 8 / 12 Nm

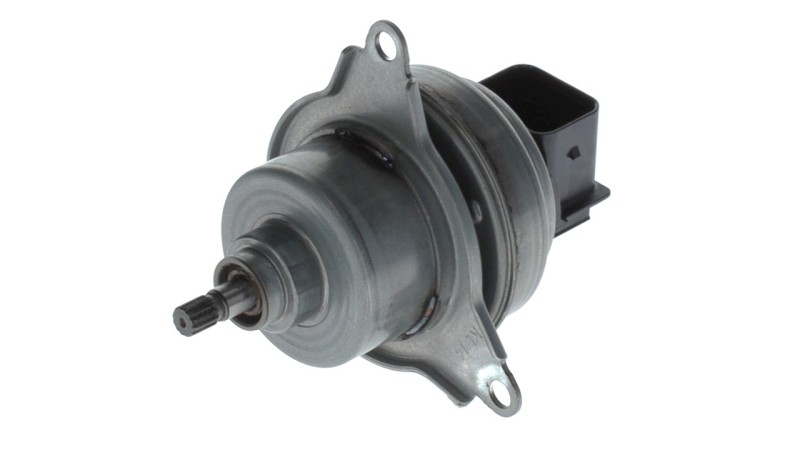

ECA-S2 0132805073

ECA-S2 Brushless Actuator

Nominal voltage: 12 V
Nominal speed: 5000 rpm
Nominal torque: 0.45 Nm

PSM 013002000L

PSM powerful brushless actuator

Nominal voltage: 12/48 V
Nominal speed: 1000 rpm
Nominal torque: 1.8 Nm

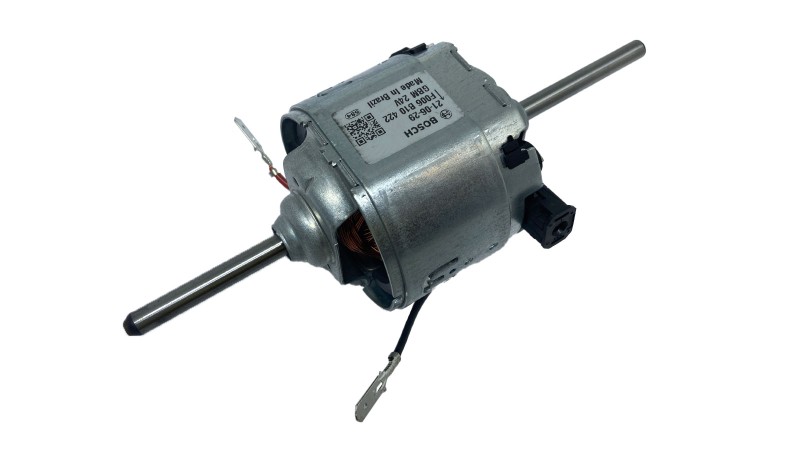

GBM F006B10499

GBM-S DC motor with double shaft

Nominal voltage: 24 V
Nominal speed: 4500 rpm
Nominal torque: 0.33 Nm

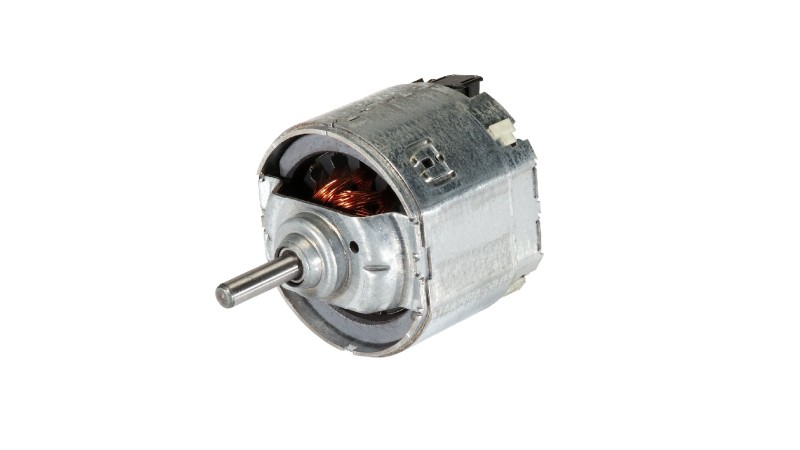

GBM 0130115008

GBM-S DC motor

Nominal voltage: 12 V
Nominal speed: 3800 rpm
Nominal torque: 0.2 Nm

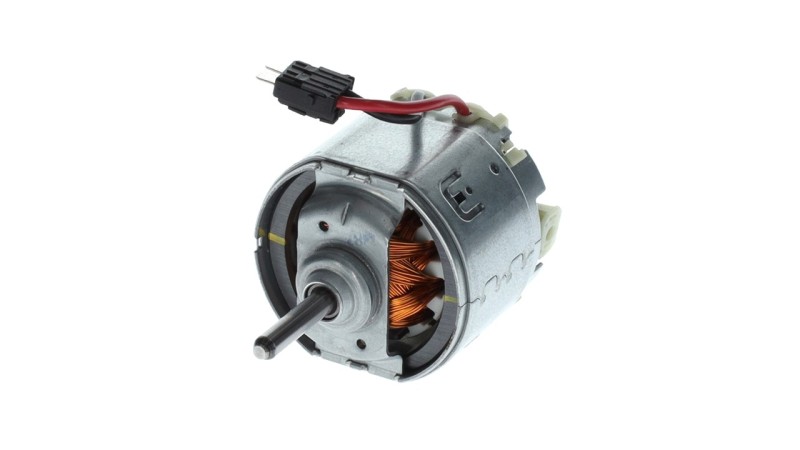

GBM 0130115017

GBM-S DC motor

Nominal voltage: 12 V
Nominal speed: 3900 rpm
Nominal torque: 0.3 Nm

GBM 0130115352

GBM-L DC motor

Nominal voltage: 12 V
Nominal speed: 4300 rpm
Nominal torque: 0.55 Nm

NSA-I 0390204092

NSA with hollow shaft on both sides

Nominal voltage: 12 V
Nominal speed: 2400 rpm
Nominal torque: 0.05 Nm

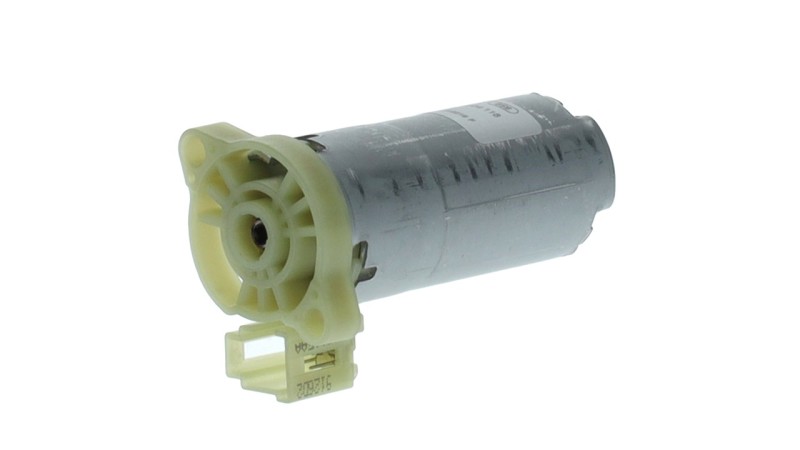

NSA-I 0390204118

NSA with hollow shaft on both sides

Nominal voltage: 12 V
Nominal speed: 7200 rpm
Nominal torque: 0.05 Nm

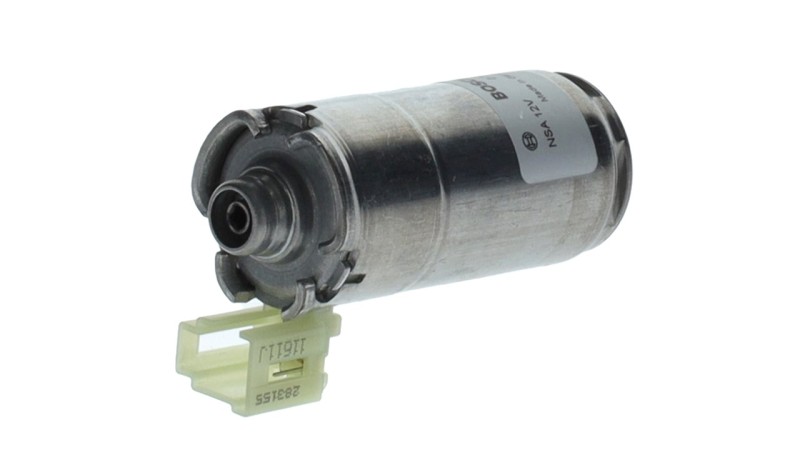

NSA-I 0390204166

NSA with hollow shaft on both sides

Nominal voltage: 12 V
Nominal speed: 3550 rpm
Nominal torque: 0.028 Nm

DC motor PDF-Catalogue

To the download portal

Get in touch with us!

Do you need more product details or any other support from our experts?

Send us a message

To contact form
