Auxiliary Pumps and Valves

The Bosch auxiliary pumps and valves are suitable for different applications, with a simple and easy installation design. In a voltage range between 12 V and 24 V, our products are also available with flow rate control via PWM. Our auxiliary pumps and valves are designed for operating mode S1 (continuous operation). These products are typically used in auxiliary cooling circuits.

View table overview

Pump/Valve

Voltage

New

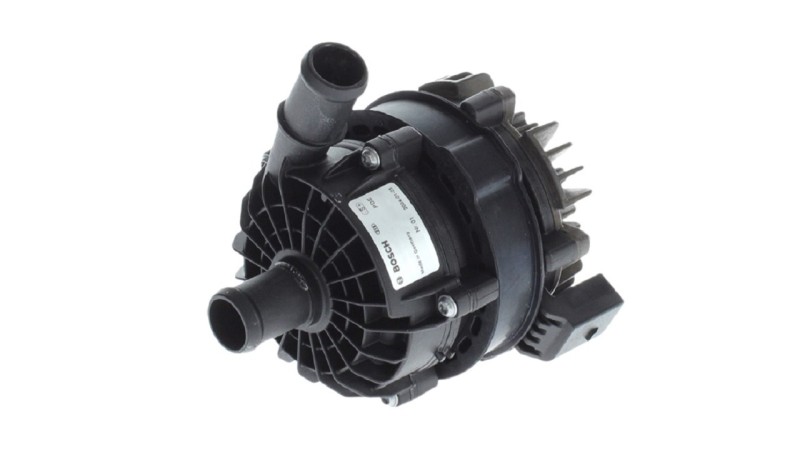

039202500H

PDE Electric cooling pump

Nominal voltage: 12 V
Nominal flow rate: 1200 l/h
Nominal pump pressure: 1.7 bar

039202453F

PCE2-L Electric cooling pump

Nominal voltage: 12 V
Nominal flow rate: 1200 l/h
Nominal pump pressure: 0.65 bar

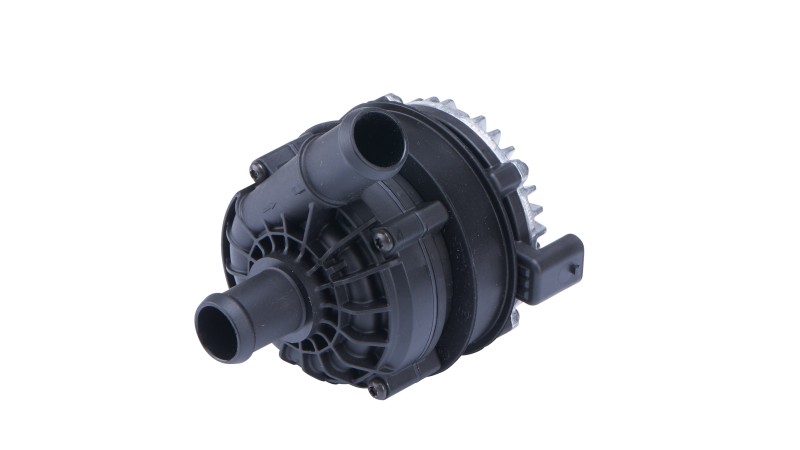

039202453G

PCE2-XL Electric cooling pump

Nominal voltage: 12 V
Nominal flow rate: 1000 l/h
Nominal pump pressure: 0.94 bar

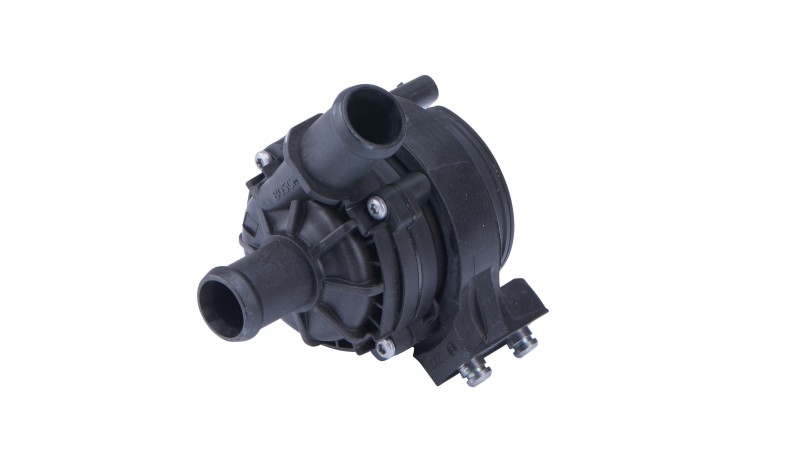

039202343G

PAD2 Electric cooling pump

Nominal voltage: 12 V
Nominal flow rate: 500 l/h
Nominal pump pressure: 0.2 bar

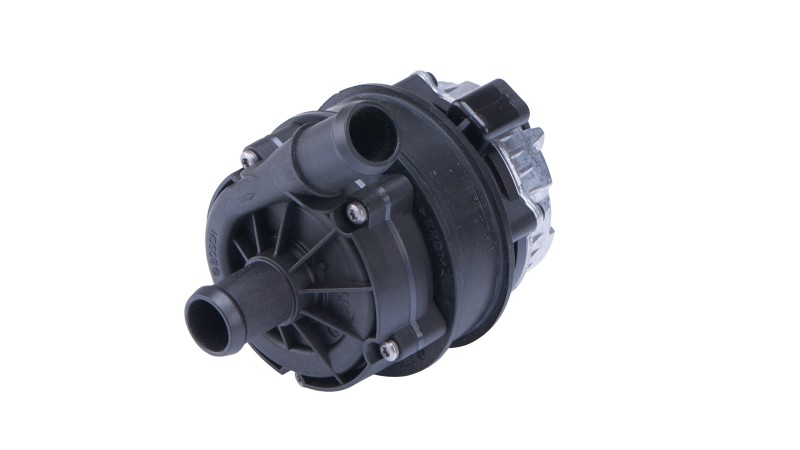

0392024041

PCE Electric cooling pump

Nominal voltage: 24 V
Nominal flow rate: 1200 l/h
Nominal pump pressure: 0.6 bar

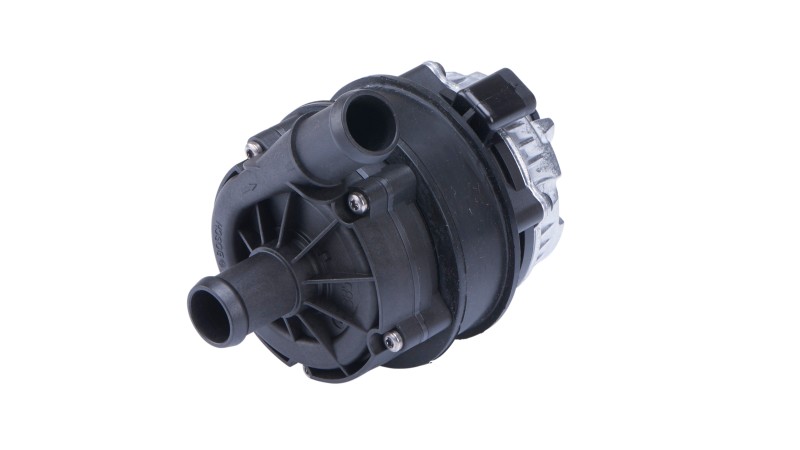

0392024058

PCE Electric cooling pump

Nominal voltage: 12 V
Nominal flow rate: 1200 l/h
Nominal pump pressure: 0.6 bar

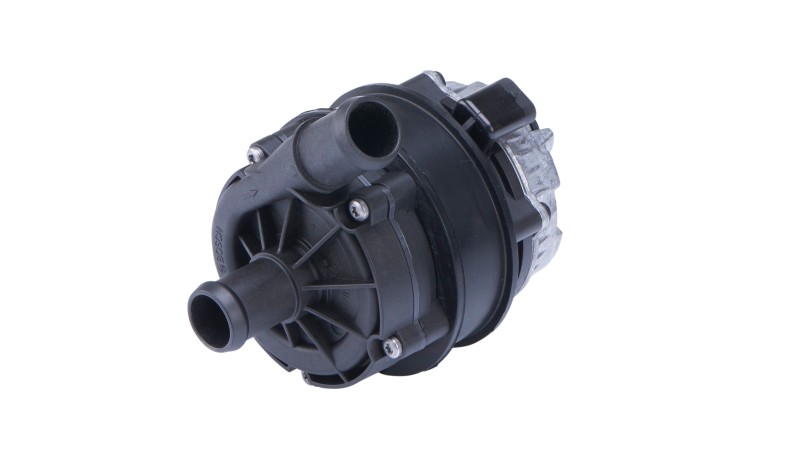

0392024078

PCE Electric cooling pump

Nominal voltage: 12 V
Nominal flow rate: 1000 l/h
Nominal pump pressure: 0.85 bar

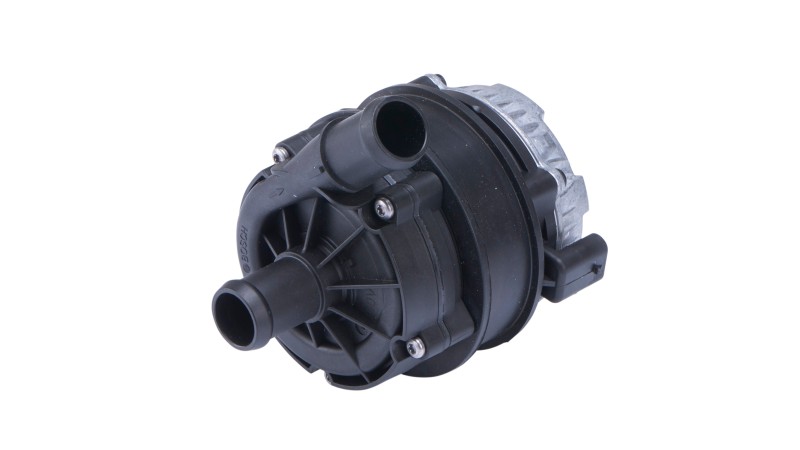

0392024900

PCE Circulation Pump for Tap Water

Nominal voltage: 12 V
Nominal flow rate: 950 l/h
Nominal pump pressure: 0.5 bar

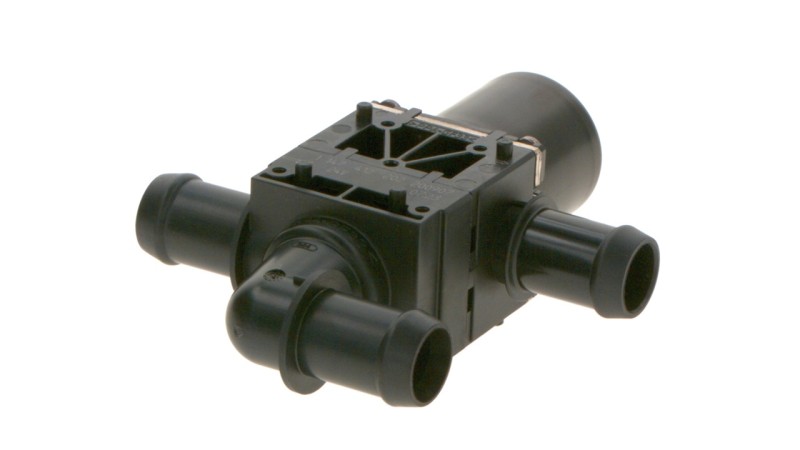

1147412202

Switch-over valve

Nominal voltage: 24 V
Switchable pressure difference: 1.6 bar
Max. pressure drop at 1500 l/h: 0.4 bar

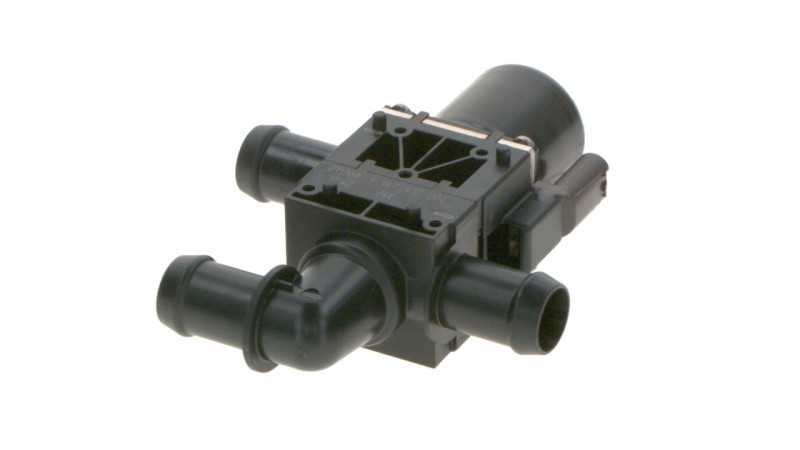

1147412204

Switch-over valve

Nominal voltage: 24 V
Switchable pressure difference: 1.6 bar
Max. pressure drop at 1500 l/h: 0.3 bar

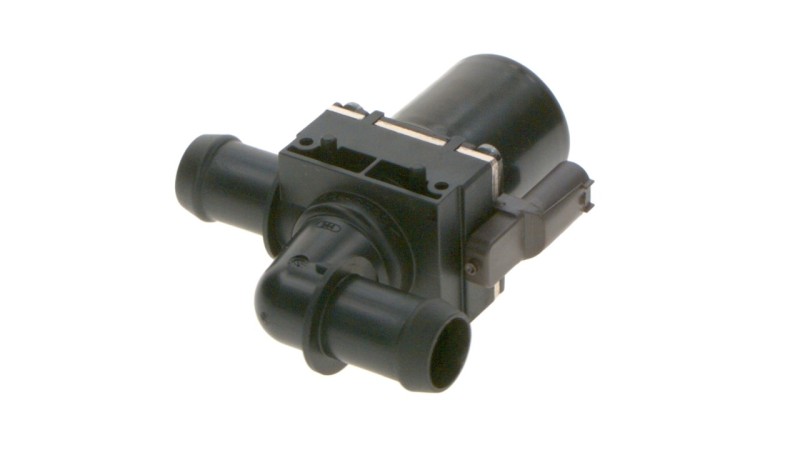

1147412205

Switch-off valve

Nominal voltage: 24 V
Switchable pressure difference: 1.5 bar
Max. pressure drop at 1500 l/h: 0.3 bar

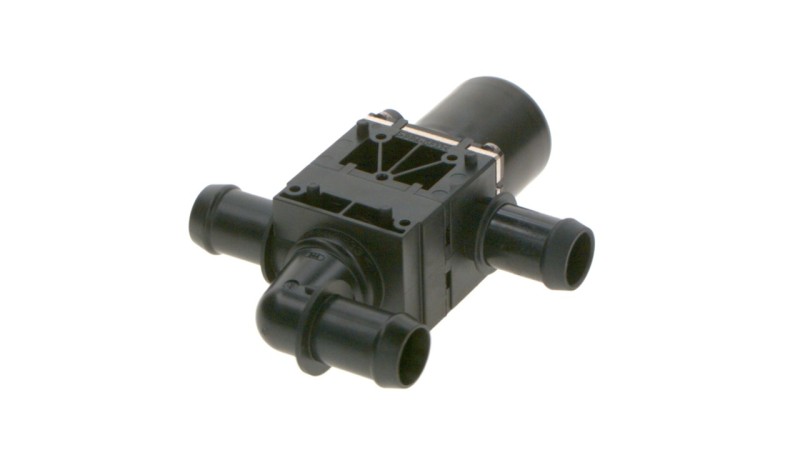

1147412207

Switch-over valve

Nominal voltage: 12 V
Switchable pressure difference: 1.6 bar
Max. pressure drop at 1500 l/h: 0.3 bar

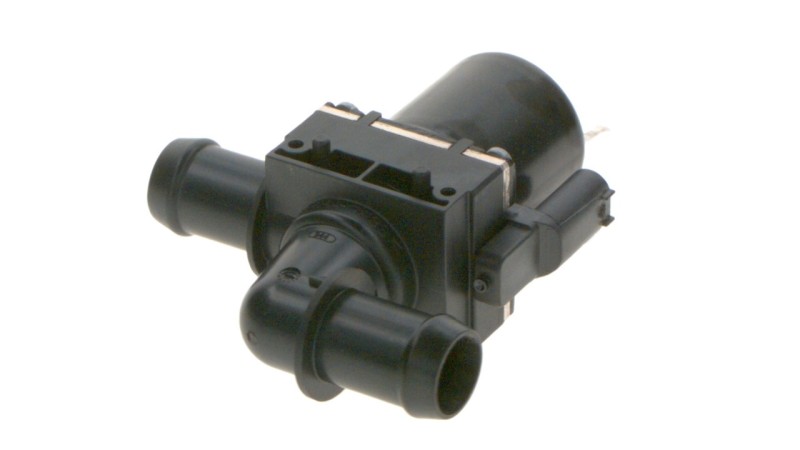

1147412208

Switch-off valve

Nominal voltage: 12 V
Switchable pressure difference: 1.5 bar
Max. pressure drop at 1500 l/h: 0.3 bar

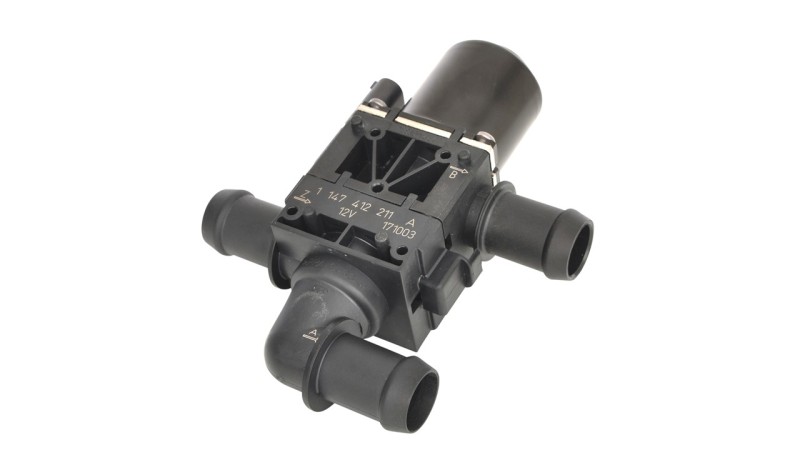

1147412211

Switch-over valve

Nominal voltage: 12 V
Switchable pressure difference: 1.6 bar
Max. pressure drop at 1500 l/h: 0.4 bar

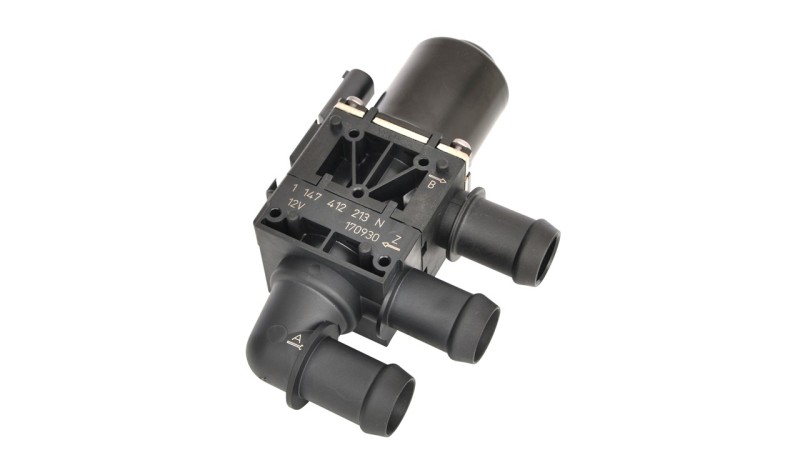

1147412213

Switch-over valve

Nominal voltage: 12 V
Switchable pressure difference: 1.6 bar
Max. pressure drop at 1500 l/h: 0.4 bar

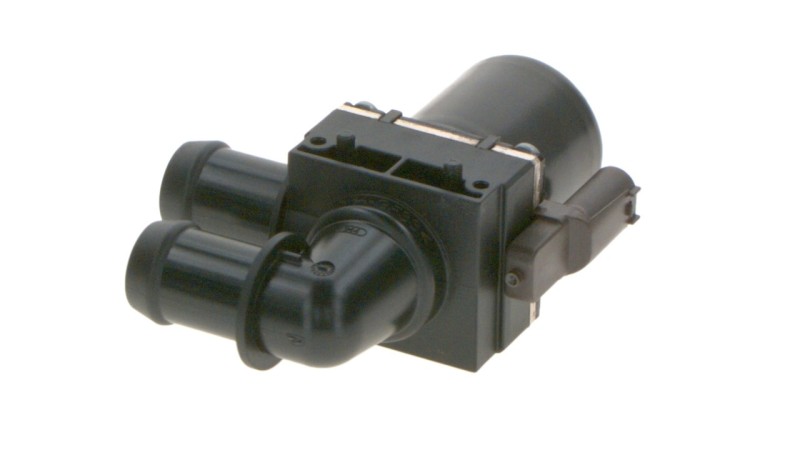

1147412218

Switch-off valve

Nominal voltage: 24 V
Switchable pressure difference: 1.5 bar
Max. pressure drop at 1500 l/h: 0.3 bar

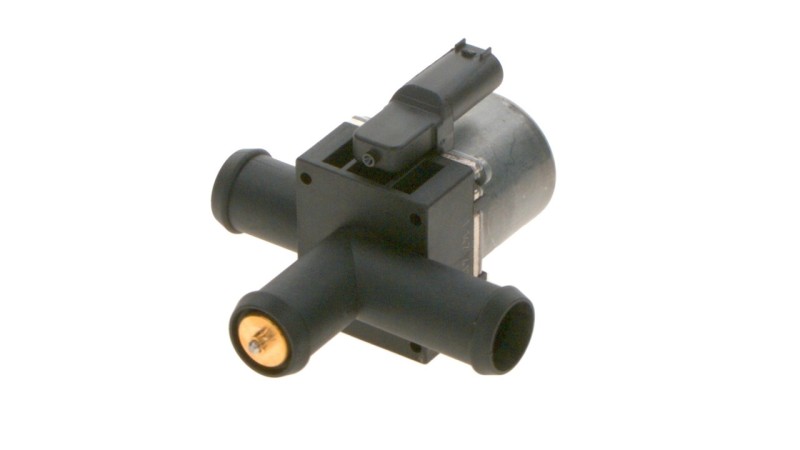

1147412282

Switch-over valve

Nominal voltage: 12 V
Switchable pressure difference: 1.0 bar
Max. pressure drop at 1500 l/h: 0.35 bar
